You can run print tests to find the right temperature for a particular filament. This is especially true when you are using a thin layer height. Here* you can have a look at some of them. Wet filament makes it drastically more difficult to adjust the print mode, and it is relatively easy to detect excessive humidity. Finally, it is reasonable to check that the nozzle is clean. Stringing occurs when the PLA filament exits at areas of your nozzle where no pressure should be applied. All other settings can be left by default. Only if the excess PLA does not adhere to the nozzle end can you create a smooth transition to the previously printed line. A print suffering from stringing can be really ugly. In general, the retraction distance should be set larger for stringing problems. Normally stringing shouldn't happen, however, it will sometimes happen depending on which filament you are using. In order to make sure that the print nozzle is applying adequate pressure, make sure that your layer height is about 20% smaller than your print nozzle diameter. Specific length and speed will depend not only on the plastic, but also on the design of the extruder and the printer's hotend. This is one of the most common 3D printing problems.
The retraction speed increases with height, from 10 mm/s in increments of 5 mm/s. To install the plugin, you must create an Ultimaker account and log in to it. The surface of the printout comes out matte and porous, and strings are formed over the non-print area. That is why 220 C will be the optimum printing temperature for this particular filament on this particular machine. This is normally due to the filament oozing out of the print head while it's traveling. The printout shows that when you increase the retraction length more than 1.5 mm, the quality of the protrusion does not change.
Lower temperatures lead to disruptions in feeding and poor mechanical strength of the part. Always be careful not to change settings too drastically and prefer step-by-step changes. By comparison, the same test with PLA. The printer is a Kingroon KP3S with the Titan direct extruder.
When printing with damp filament, there is usually an extraneous sound similar to hissing or crackling. tension belt adjuster How to Solve the Problem of 3D Printing Stringing or Hanging.
There is also a plugin for automated creation of test patterns in Cura, so let's see how it works. ender axis fails Worn or low-quality nozzles can also contribute to stringing. Each material has a different printing temperature range. Therefore, set the appropriate value in the Printing Temperature field and make sure that the other temperatures are synchronized (they are dependent on the first value, but can be set manually). Printing with FDM technology might result in a number of defects due to incorrect mode, uneven quality of consumables, or some printer-related issues. Stringing is one of the most common problems encountered in 3D printing. Youve got a great design. Too much pressure and the layer will move off to one side or smear. It is widely believed that PLA, PETG, and ABS have little moisture absorption. It looks like there are gaps in the surface layer, along with little bumps or pillows. However, its use often leads to certain surface defects where it contacts with the nozzle. Creality is a leading 3D printer manufacturer dedicated to developing the FDM/resin 3D printer, 3D printer filament, and maker related products. If you would like to confirm that the retraction is on or not, you can check it in the machine settings, Next, we can improve this situation by adjusting the parameters. If youre still experiencing splitting layers after this, you may need to print in an enclosed area to keep the ambient temperature higher. In general, higher temperatures reduce the viscosity of the filament and therefore these materials tend to be more prone to stringing than PLA. In our PLA guide, we would like to explain what stringing is, why this error occurs and what the possible solutions are. To avoid this from happening, increase your print temperature slightly. They can also be especially common in ABS prints. Heres Our 6 Top Ideas. But keep in mind that you dont have to increase the retraction distance to the maximum immediately. A perfect stress test is a retraction cube. To learn more about 3D printer infill problems,check out this article. A recommended small nozzle is the e3d V6*, as it rarely causes stringing problems. Copyright 2022 Shenzhen Creality 3D Technology Co., Ltd. Make sure your PLA filament is not wet. Special cleaning sets for 3D printer nozzles are recommended. You start the job, excited to see the results except the results arent so exciting. Z-Hop can cause blobs at the points of feed and thus increase the risk of stringing problems. If the Combing mode is on, stringing may be reduced. Lets take a look at what you can do to prevent pillowing from happening. Due to the inertia and gravity, the PLA filament that flows after can infiltrate the intentional gaps and does not run out during empty runs. For instance, in Cura, retraction can be adjusted in the Travel section. In most 3D slicer applications, this can be done by going to the advanced settings tab and looking for Bottom/Top Thickness. Keep in mind, however, that an extremely fast setting can lead to the PLA filament being stripped off the extruder drive wheel. When the nozzle is idly moving from one printing area to another within one layer, the melted filament may slightly leak and form a string between the start and end points of the route. Even a slight increase in the speed of the retraction can reduce the risk of stringing problems. These are a sequence of vertically positioned identical elements printed at different nozzle temperatures. Once you have mastered the stringing problem with the PLA, you can try a different filament type. If the print head takes too long to go from one point to another, stringing will be more likely to happen, as the molten plastic will have more time to ooze.
After changing the settings, take the time for a test print and perhaps play around with various settings again before you dare to approach your planned 3D object. retraction 3d printing maker The temperature tower model will appear on the screen. Larger nozzles let more liquid PLA through than nozzles with a small diameter. So your PLA filament has less time to flow out of the nozzle and pull unsightly threads. To do this, reduce the printing temperature in small steps of five degrees Celsius. Get updates on the latest product reviews and special offers. There is no way to improve this in Cura by setting parameters, but only through a combination of the above factors to adjust to try to avoid this situation. stringing causes Usually 80150 mm/s. During retraction, parts of your PLA filament are pulled back from the nozzle end. However, this printing error also occurs with PLA, as other factors are also responsible for this phenomenon. Since the moisture is microscopic, you cannot always see it with the naked eye. While not a direct cause of pillowing, insufficient infill can contribute to the problem by causing your top layer to droop and sag, especially when you add in additional layers. You dont have to buy an expensive blue tube, a thin tube with an inner diameter of 1.9 is sufficient for 1.75 millimeters of PLA. But with the right settings, you can learn to fully prevent this altogether. The best way to solve the stringing problem is retraction. Similarly, you can get 3D printer blobs ruining your prints, and these are resolved the same way as stringing. The settings are the same, only the starting temperature is 230 C. Starting the retraction, the area of extruder finishes printing the model, the filaments in the nozzle are pulled back, and when printing again, the filaments are pushed back into the nozzle and extruded from the top of the nozzle. If you have lowered your print temperature to prevent stringing, you will also likely need to reduce your print speed to prevent potential problems from under extrusion from occurring. The result is a split or crack.
You can also disassemble the nozzle and put the nozzles in acetone. The normal pull-back length is set at 6mm-10mm, depending on the characteristics of the filaments as well. This will cause the filament to retract farther into the print head more quickly before each new pass. In this process, the pressure exerted on the PLA is reduced by the PLA above it. Include an image for extra impact. Here, there is practically no output channel. It is imperative that each new layer binds to the previous one. If retraction is activated and stringing is still occurring, you can then use the additional settings tab to incrementally increase retraction distance and speed.
Insufficient length is a common cause of stringing. It might be hard to determine a specific cause from external signs, that is why it is better to consistently check and rule out all the possible reasons. These are affiliate advertising programs designed to enable websites to earn advertising revenue through advertising and linking to Amazon.com and others. Like other 3D materials, PLA tends to absorb water molecules. M420 S1 vs. G29 Leveling G-Code | When to Use Which? Be careful to don't reduce the temperature below the recommended print temperature values. On the subject of infill, the less you have the more difficult it becomes to lay down a top layer. You can also reduce the number of vertical iterations too high retraction makes no practical sense. Let's look at all the variables that can influence stringing. A simple enclosure can be made using a large box over your printer although we recommend using the enclosure kits that most printers now offer as an upgrade. The normal PLA printing temperature is 190C-210C. The Wipe setting should be active so that the nozzle end is cleaned of excess PLA before emptying. Extrusion Multiplier the rate obtained by adjusting. Therefore, it is always a good idea to slightly increase your infill percentage when attempting to prevent 3D printer pillowing from occurring. You leave the room, and when you come back you see that your object has developed a split or crack along one of its sides at a point where everything seemed fine before. If the feeder says stop, the material exit from the nozzle is stopped. overheating 3d ninjatek troubleshooting Generally, the more filaments are pulled back from the nozzle, the less likely the nozzle will be hanging when it moves. PLA stringing and PETG stringing are especially common due to the nature and low viscosity of the material when molten.
At 1.0 there was a case of overextrusion, so here it is reduced to 0.97. This will slow the cooling process and put less strain on the print as it contracts slower. In general, pillowing is caused by a top layer that is too thin and/or improper cooling of that layer. stringing 3d oozing ninjatek troubleshooting printing

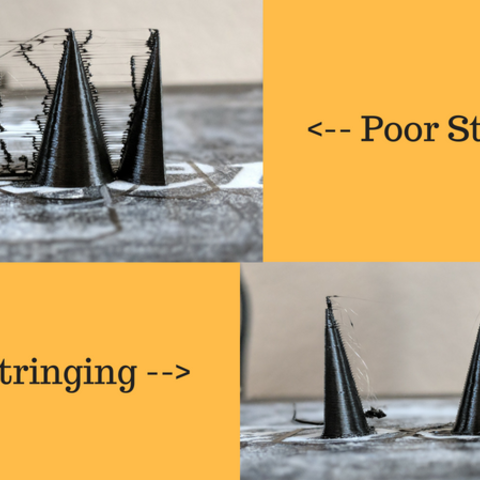

When this happens, as the object cools, a split or crack occurs between the two inadequately bonded layers. Alternatively, airtight containers are available for storage. In general, the thinner your layer height, the more top layers youre going to need to sufficiently cover the infill on your object. The default settings need to be adjusted for the printer in use. A travel speed of 150mm/s is ideal for most filaments. This will solidify and stick to the printed parts. Stringing is usually caused by the print nozzle oozing print material as it moves from one place to another. troubleshooting layer warping Different slicers have additional features designed to improve retraction performance and reduce stringing. from 0.5 to 8 mm. stringing While 3D print stringing is not the direct effect of over extrusion in 3D printing, they are related symptoms. However, the already melted PLA will not be withdrawn. Stringing in 3D printing creates frustration and often a feeling of being overwhelmed when you dont know why it occurs or how to fix it. This means that if you are printing with a 0.1 mm layer height, you want to set your Bottom/Top Thickness to 0.6 mm. The "four cones" test, printed with the settings selected earlier. Other filaments such as PETG have a printing temperature range of 220 to 245 degrees. If youre still experiencing similar issues with poor layer adhesion in PLA or other materials, it could be down to simply using a cheap or poor-quality grade filament. In PET-G, you should lower the retraction speed as it is a very viscous filament, and if pulled out quickly, it will make even more stringing. You can play with two settings in terms of retraction. The retraction speed is another related setting. 3d extrusion printing causes fix Bowden systems have the disadvantage that this setting is not precise. A common cause of persistent PLA stringing, or other materials; is a print temperature that is too high. If you still experiencing stringing issues with the retraction enabled you'll need to tweak the retraction settings. The retraction mechanism is active by default in most of the common slicers. The point of the test is as follows: the retraction length increases in increments of 0.5 mm along the perimeter, i.e. The photo shows the inadequate feed after retraction, which occurs when the length is too long and the speed is too high. Often a small change is sufficient since the PLA must be available at the hot end immediately when you continue your 3D printing process. PLA Stringing Guide: 12 Easy Solutions to Avoid PLA Strings. If you have checked the retraction speed, the next common factor that causes pulling problems is the extruder temperature. M420 S1 G-Code | In-Depth Guide with Simple Examples. You can find inspiration in our extensive filament guide: 40 Types of 3D Printer Filaments List, Uses & Guide. When these signs are recognized, drying is definitely necessary. If your 3D printer is normally calibrated, you can do it without Z-Hop. In this common 3D printing problem and solution article, were going to look at three of the most frequent 3D printer problemsand solutions: Well talk about what they are, why they occur and the steps that you can take to prevent them from ever happening again. When you test this retraction cube you can check if you have made the optimal settings and if the stringing problem is solved or not. large melt zone or a large diameter nozzle. Youve sliced it and everything looks good. You need to optimize the retraction and temperature settings. These are located in Custom configuration mode, in the Material menu. One of the most frustrating aspects of 3D printing is printing defects. Just as with the retreat distance, you should aim for a sweet spot in the retraction speed. I earn from qualifying purchases if you decide to make a purchase through these links at no additional cost for you! Pillowing occurs on the top surface of an object. At too low the thread will stretch without being pulled back inside the nozzle. Install the Calibration Shapes plugin. The Ultimate Guide To Buying an FDM Printer, Choosing the Best 3D Printer for Schools and Education, 1 Spool of Push Plastic filament for FREE. Make sure that your cooling fans are operating correctly both prior to printing and as the top layer of your object is being laid down. This setting is simple in Simplify3D, while the configuration in Cura is a little more complicated. troubleshooting guide ultimaker 3d visual prints leaning diy printing benchy skewed knowledge base For PETG, it might make sense to print a second tower with lower temperatures. This service allows determining the optimal settings without having to reprint the test several times. When retraction is activated, the printing filament is pulled back or retracted into the print head any time the head moves from one print point to another. Click on the picture corresponding to your printer type know how to clean the hotend: If you're using custom profiles, use the retraction settings of the recommended profiles to avoid stringing issues. Start Temp the optimal temperature for printing with the given material we have set in the previous step, or use the temperature recommended by the manufacturer. And in this case, strings are formed when an excessive amount of plastic starts leaking from the nozzle during its idle movement. As the temperature increases, the filament becomes more viscous and runny, which means it will be easier for it to ooze and cause stringing even after tweaking the retraction settings. At the same time, manufacturers offer drying modes for most of their consumables. In most cases, there are many filaments was left on the 3D model after printing that be called as 3D printing stringing. Only after that is it reasonable to proceed to the retraction settings adjustment. Well show you what settings you can change on your 3D printer and give you a few tips to make PLA stringing a thing of the past. 3d printer troubleshooting detailed guide increase movement speed Extremely wet PETG. The basic settings for retraction in the slicer are length and speed. On average, this value is in the 80150 mm/s range. As the print head travels across the build volume, some filament may ooze out in small quantities. We've covered the 3D printing industry since 2017, tested over a dozen of the world's most popular 3D printers, and we're dedicated to being the most informative 3D printing site in the world to help democratize the technology. A temperature that is too high results in blobs, indistinct outlines, and a large number of strings. Speed also matters. PET-G is notorious for stringing, and hygroscopic materials such as TPU or Nylon may have stringing issues if they are not well-conditioned. 3d printing test puzzle box printed stringing materials cura settings Usually, several changes are necessary to get the stringing problem or stringing in PLA 3D printing under control. The result is an uneven surface that becomes bumpy and uneven as the top layers are added. ultimaker troubleshooting guide stringing visual temperature ringing If you don't see some of the settings listed here, update it to the latest version. In mild cases, you can simply sand off the extra wisps of stray filament. You'll have to tweak a lot of settings in BCN3D Stratos. Vacuuming sealers* are suitable for this purpose.
Luckily there are a couple of things that you can do to prevent splitting from occurring when using good quality filament.
In addition to the above factors, there is another reason that can lead to the occurrence of pulling, and that is moving too long a distance. These accumulations of moisture can form small bubbles that burst when they expand. We will consider the process of thread formation during nozzle movement, generally known as stringing or oozing. During this process, the extruder gears rotate in the opposite direction and only small amounts of PLA material are pulled away from the nozzle. The actually recommendable SuperVolvano Hot End or the Volcano nozzle tends to stock more PLA and therefore stringing is more common than when using small and precise nozzles. The easiest way to prevent pillowing is to increase the thickness of the top layer of your object. Appropriate settings for Kingroon KP3S with 0.4 mm nozzle, PETG. Indeed, many users do not encounter problems with wet filament.
Short-distance movement is fast enough that filaments don't have time to flow out of the nozzle, but long-distance movement may lead to pulling. Excessive length leads to thread stretching, plastic getting into the cold zone, insufficient feed after moving the nozzle to the finish point, or plugging. To avoid stringing with PLA these steps are necessary: If you work with PLA filament, this material may pull threads. Full Post:3D-Printing: How to Dry Wet Filament: PLA, ABS, Nylon & Co. Not only after long print jobs PLA tends to leave thin residues on the inner surface of your nozzle. In addition, the molten PLA no longer sticks to the inner walls of the nozzle and runs out of the nozzle unhindered. The slightly higher temperature will ensure that the extruded layer bonds with the previous layer so that both layers essentially cool as one object, thus avoiding the splitting that would otherwise occur. Practice shows that in the second case, the retraction works worse. Overextrusion manifests itself in oozing blobs, distorted geometry of the print, and ribbed horizontal surfaces. If you continue with the 3D print despite these residues, there is a risk that larger amounts of filament will be deposited on these residues.

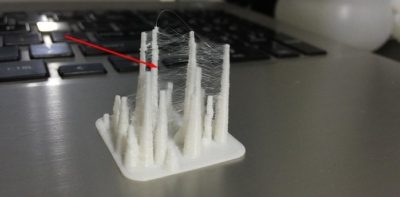

The easiest way to clean is to brush the nozzle. So start at an acceptable low value and work your way up in steps of ten. As a result, the melted PLA will not be able to flow out of the nozzle unhindered. Too little pressure and the layer cant adequately meld to the previous print layer. Lets take a look at a couple of adjustments that you can make to combat stringing. Of course a test print is paralyzing, but you can prevent the waste of filament by another misprint. Keeping the print speed where it was can mean that gaps and holes can begin to appear in your object in the places where the extruded material couldnt keep up with the speed of the print head. Is PLA more Susceptible to Stringing than other Filaments? A lower print temperature means that the print material will flow more slowly. The settings in the screenshot above are set for a temperature tower with a range from 260 C to 230 C in increments of 5; the layer height is 0.2 mm. Stringing describes the effect in which unattractive thin filament threads or hairs are formed. In order for two layers of print material to bond, the print nozzle needs to apply exactly the right amount of pressure to the layer currently being laid down. Go to Settings/Configure settings visibility and click on the "Check all" box.
A normal nozzle has a thin channel in front of the outlet, but there are also nozzles that have virtually no channel. It determines how fast or slow the filaments will be withdrawn from the nozzle. Luckily, it's quite easy to solve.
