Most fittings can be grouped into one of four categories: Fittings which extend or terminate tube lengths: Connects twohoses to each other via solvent welding, soldering, or threading.
Inside diameter measures the diameter of the empty portion of the cylinder, while outside diameter includes the thickness of the hose wall, as pictured below: ID and OD measurements. Flare fittingsare the best connections for hoses handling high pressures. Once the type of fitting required has been determined, the most fundamental aspect ofhose fittings can be addressed: proper sizing.
These materials exhibit very good chemical resistance and dielectric properties. Below is a chart depicting nominal thread sizes and their corresponding values. Hose fittings connect runs ofhose to other hose sections, equipment, or other components. Follow the laid down steps exactly in the series illustrated to utilize a 3-way hose connector. Each standard corresponds to a particular number ofthreads per inch (TPI). Special thanks for reading thus far. If you know how to connect a garden tap to a hosepipe then you should be familiar with connecting the hose to a pressure washer. Especially precise threads are called "dry fit", meaning they seal without the need for an additional sealant, which is important in applications where sealant addition could cause contamination or corrosion. You no longer have to tighten your hose or accessories using threads or plastic rings anymore. Image Credit: MISUMI USA | Staubli Corporation.
By using this site, you agree to our Privacy Policy and our Terms of Use. Defining this systemis the first step to determining theappropriate fittings for the application. Fittings which provide special connections or functions: Allows two separate fittings to be connected at each end. tap adaptor connector hose pipe brass garden water fittings quick Galvanized steel is coated with zinc for rust and chemical corrosion resistance. In addition, the ends of a hose lengthtypically have integral (attached, mostly permanent)connectors and fitting ends. hose joint pvc pipe way water 5pcs 20mm connector dia inner type In general, however,hosefittings correspond to either hydraulic or pneumatic systems. There are specific standard threads used for garden hoses that you need to pay proper attention. Journey with us in this complete guide to garden hose fittings, as we take you on the nitty-gritty of what it all entails. The standard 3/4-11.5NHR and 3/4-11.5NH are used for thin-walled and full-form threads respectively. The standard is popularly known as GHT (Garden Hose Thread) also known as NHR( National Hose). Just Screw in a tap connector to the washing machine water inlet. To connect your hose to this fitting, follow the steps outlined below: Most garden hose come with a water stop feature at the tail end of the hose pipe. By submitting your registration, you agree to our Privacy Policy. FREE Selection Tip: It is essential to check the compatibility of the system fluid with any proposed fitting materials. GlobalSpec will retain this data until you change or delete it, which you may do at any time. Sprinklers have fittings at the end that is similar to those found on a tap connector. Garden hose fittings are an important accessory that either comes along with the hose pipe or purchased separately. https://www.amazon.com/Lead-Brass-Fitting-Class-Female/dp/B003OYJEI8/, Three-way hose connectors or Y-Hose connectors, Crew and quick release fittings for indoor taps.
I see the Y connector but I need a reverse one, to hook up to the hot and cold at the same time to run to one hose. Why do I say so?
Hydraulic fittings must have seals which prevent the leakage of liquid andoften must be resistant to rust or other types of chemical corrosion. camlock bsp coupling dynatexpro They help to branch a hose in two different directions. For more information on industrial flanges, visit the Pipe Flanges Selection Guide on IEEE GlobalSpec. Tubingand pipingtypically have separate fittings which are applied at the time of use or construction. To use a double male connector with hoses fitted with connectors follow the laid down series: Tap connector> Hose connector > Hose 1 > Water stop hose connector >Double male connector >Hose connector >Hose 2 > Water stop hose connector. Most of your gardening requirement will make use of fittings, adjustment and a little bit of improvisation to achieve the daily gardening task. To begin, it may be important to distinguish some terminology. 20mm mixte sourcingmap connec voie tuyau Notify me about educational white papers. If for some reason beyond your control, your washing machine isnt permanently plumbed or its located outside your building, you can improvise by using a garden hose to supply water to the machine. For more information on types of valves, visit the.
We have been able to touch the major fitting accessories required for basic everyday use. TO THE Brass- strong, durable, and corrosion resistant, with high temperature ductility and good conductivity. Hose fittings are parts used to connect hoses to equipment, among the fittings used to connect piping.
hoseandittings.com - Hose and Fitting Shop, Legacy - Selection Guide: Quick-Disconnect Couplers & Plugs, Parker - Hydraulic Hose, Fittings and Equipment: Technical Handbook, Parker Hannifin | CEJN Industrial Corporation | DME Company. Pneumatic fittings must have very tight seals to prevent gas leakage and must be resistant to chemical corrosion.
Stainless steel- relatively strong with excellent chemical and corrosion resistance.
How to Increase Water Pressure in Garden Hose? hoses adapter copper These surfaces are joined and sealed via clamps, bolts, and/or welding. Do not make the mistake of measuring outside the wall as that diameter is too large. This allows fluid flow to be combined or split apart. They are best suited for low pressure applications, since they do not provide a strong seal. Image Credit: Clippard Instrument Laboratory, Inc. Cam-lock fittings are connected using tabs which fold down after insertion into the receiver tolock thefittingin place. They combine or split apart fluid flowlike tees, but less abruptly. In other applications, we may connect hoses of different sizes or repair damaged parts. Most common angles are 90 and 45, but 22.5 elbows are also made. Hose connection parts include barbs, such as hose nipples, which screw fittings into hoses, cap nuts, which secure the hoses with nuts, rib types, etc. Standard nipples are straight with male threads on both ends. They are also needed to attach other accessories like a spray nozzle or wand. Hosefittings are distinguishedbased on their connection type and function it performs. Although larger sizes of hose are used in commercial application, in the US the most popular size of hose used to deliver water from your spigot to the garden is 5/8 inch in diameter. These fittings typically require crimping tools to make the connections. Fitting construction and material specifications areapplication-dependent;consulting the fitting supplier is typically a wise route for optimizingcomponent selection. Tube fittings connect runs of tubing for in-line, offset, multi-port, and mounting configurations to other tubing sections, pipe, hose, and other fluid transfer components.
Use a hose clip to hold it in place to avoid it being forced out under pressure when in use. Barbed fittings connect hosesvia abarbed tube with a tapered stuband ridges inserted into the hose.
Quick release fittings are the way to go for convenience and ease of use.
Connecting sprinklers to the garden hose are one of the easiest tasks to accomplish. Couplings which can be disconnected without cutting. By itself, aluminum has low tensile strength and is used when high corrosion resistance is needed. Industrial Computers and Embedded Systems, Material Handling and Packaging Equipment, Electrical and Electronic Contract Manufacturing, Connectshose together with the addition of a valve for the control of flow. This means that they have a valve just at the end that stops water from flowing once the sprinkler is removed. MISUMI uses cookies to provide you services and improve this website. This video provides an introduction to cam-lock fittings: Crimp fittings involveplacing hoseover a tubular end and crimping against it with a sleeve or crimp socket. Pneumatic applications involve the transfer of gases. as well as subscriptions and other promotional notifications. For more information please see our, Related components (member for replacement), Simultaneous Two-Hand Pushbutton Switch Mechanism, Adjusting Hardware, Fasteners & Accessories, Positioning Stages, Optical & Inspection Components, Casters, Leveling Mounts & Anchor Brackets, Electrical Board, Cabinet & Enclosure Parts, Washing, Sterilization & Cleaning Supplies, Date & Recycle Mark Inserts, Pins with Gas Vent, Electric Vehicle Manufacturing and Assembly, Water / Air / Chemical / Oil / Powder / Solvent, paint, Water / Air / Gas / Chemical / Oil / Powder / Solvent, paint, Water / Chemical / Oil / Powder / Solvent, paint / Foods, Water / Air / Chemical / Oil / Powder / Solvent, paint / Foods, Water / Air / Gas / Chemical / Oil / Powder. The sizing of a fitting is defined by the inside diameter (ID) and outside diameter (OD)ofits corresponding connections, measured in inches(in)or millimeters (mm). Companies affiliated with GlobalSpec can contact me when I express interest in their product or service. They ensure two sections of a hose end meet and extend without leaking. Ball and sleeve fittings connect an outer sleeve to an inner (ball) fitting. water flexible hose supply line faucet cold stainless herwey hoses 2pcs connector steel Allow this guide to be a go-to resource for information on the basic fittings for your garden hose. Incompatibility could result in corrosion causing leakage or system damage. You can connect the separate water lines on both ends, you can install valves before the threaded connection to control the flow as well, and connect the hose with spray nozzles on the outlet end. Hi Virginia, How about using something like this: https://www.amazon.com/Lead-Brass-Fitting-Class-Female/dp/B003OYJEI8/.
Fittings are attached to tubes via a number of different connection methods, eachwith its ownconveniences and advantages. Fit a brass 3/4 inch female connector to the hose.
They are those extra parts at the end of the hose or within the entire length that is required for proper function and attachment to heads, faucets or sprinklers. Use a tape to measure the inside of your connector from one side within the wall of the hose to the other end of the wall. It is similar to PVC, but can be used in exposed applications because of its resistance to UV, weathering, and ozone.
In industry, "tube" and "pipe" are nearly interchangeable terms describing rigid hollow cylinders composed primarily of one solid material throughout.

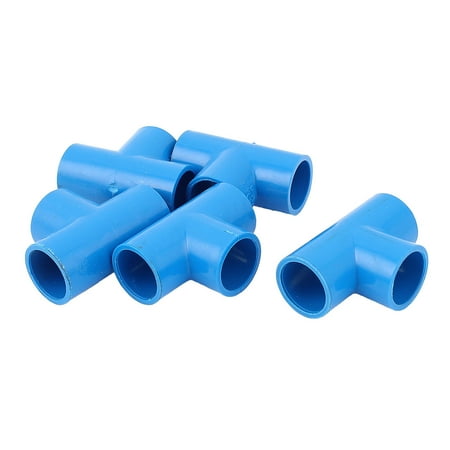

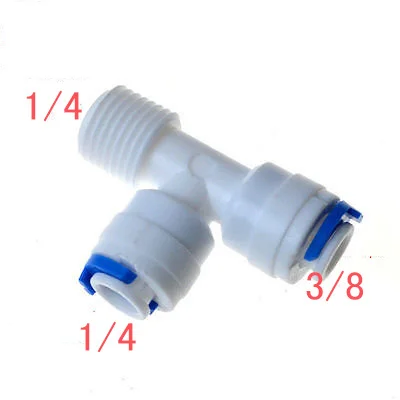

All you need do is push fit the hose onto the sprinkler. Whats the Size of a Garden Hose Connector? Compression fittings are commonlyused fortubing and piping applications, but can bedesignedto connecttwo hose sectionsor to connectahose to a tube. Systems are typically configured with straight sections connected by fittings or specially formed connections and joints. Connects three pieces ofhose in a T-shaped intersection. gartenschlauch watering connectors schlauchverbinder wasserhahn schnellanschluss zoll The thread size is measured and based on the inside of the hose fitting.
geka coupling Fitting made from bass and less likely going to be damaged. Before we dive into the basic connector needs you require, lets talk a little about the right size of a garden hose connector. Copyright MISUMI Corporation All Rights Reserved.
Carbon steel is alloyed with higher levels of carbon for increased durability and strength. Some ball and sleeve fittings function as push-to-connect fittings which are convenient for applications requiring frequent disconnection and reconnection of the hose section.
Flange connections in hose are often built-in rather than joined separately as with pipes and tubes. PE is grey or black, semi-flexible plastic. Remove the spray gun and all other accessories fitted to the end of the hose pipe. Garden taps in the USA are made with a 3/4inch GHT thread size. The larger the size of a garden hose the more volume of water delivered but at reduced pressure. I agree to receive commercial messages from GlobalSpec including product announcements and event invitations, ACCESS 3-way hose connectors are also known as Y connectors and can be used to separate three hoses in a Y junction form.

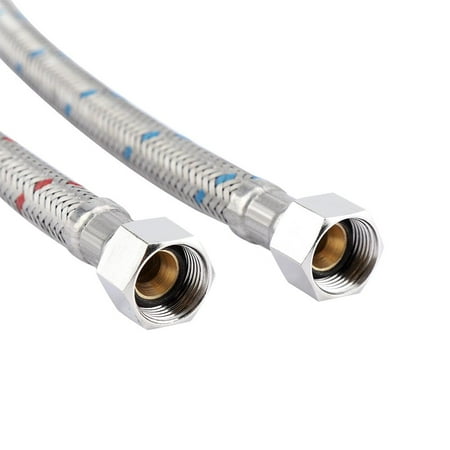

End fittings provide specific surfaces for making hose connections: Flange fittings are ports with flush surfaces perpendicular to the attached hose. They can easily be attached to taps without having to screw in connectors. Covers the end of a hose, attaching on the male end via welded or threaded connection. Aluminum - lightweight and corrosion resistant. fresh water camco connector hose degree Material: SUS304. Include me in professional surveys and promotional announcements from GlobalSpec. nozzle vias adaptador valvula ferrotech al2 laton verteiler wasserleitung tuyau conector manguera connecteur kraan adapter grifo riego rapido separateur adaptateur
