No matter what choice in the type of pool you make or decide to upgrade your new pool with optional equipment, make sure to do your research before buying. The seven major components of a pool include: Some parts are on the pool systems suction side, while the others are on the pressure side. A new pump can run over $800. This device automatically feeds the pool with chlorine, bromine, or minerals, replacing the need to use a floating dispenser, or placing tablets in the skimmer basket for sanitizing purposes.
The larger the pool, the more horsepower the pump will need to move the higher volume of water. pool swimming construction easycare pools concrete diagram structure wave step pleasure nz How To Prevent & Destroy Algae In Your Swimming Pool, Considering Pool Scuppers? There are usually 2 or 3 of them in an inground pool, while above ground pools only use 1. Other than that, water still goes from the pool, through the skimmer, through the pump, through the filter, and through the return jet back into the pool. Once you know what each part of the pool does, its location will make sense. pool swimming spa plumbing diy build own equipment diagram bbq island pools container crashers yard natural piping inground "How Swimming Pools Work" This generator replaces the chemical feeder option for saltwater pools. Its name says it all.
If youre having trouble with your jets, read my return jets troubleshooting guide. ), and cartridge. Single speed pumps work at 1 speed, 2-speed pumps have dual speeds (high and low), and variable pumps can be set at various speeds.
In the past, when the main drain was covered, one problem was the suction became so strong that some swimmers, including children, got stuck in the suction, causing them to drown. Pump K. Check valve. inground He has built pools and natural landscapes for hundreds of homes and businesses across the country. While it can be used to drain the pool, its seldom used that way. skimmer inground weir skimmers weirs poolplaza filtracin In the next section, we'll look at the different types of pools.
Think of it this wayif you were going to maintain your own car rather than take it to a mechanic, its imperative to know how the engine works, what all the parts are, how they work together, and what to look for when something goes wrong.
Thankfully, todays pools include stricter safety precautions for main drains, but caution should always be taken, and owners should keep the main drain clear of debris for this reason. Compare quotes for free from fully vetted pool professionals.
The suction lines are either a flexible or rigid set of PVC pipes that run from the skimmer to the pump system. Main drains can be found in the deep end of the pool and they work alongside the skimmers to pull water in. There are several types of pumps on the market, and which one you choose is a personal preference; however, you will need to determine the flow rate and head to find the right size pump: These factors will also play into how often to run your pool pump each day.
You will need to empty the skimmer basket periodically to keep it from clogging and keep your filtration system working well. A chemical feeder is not necessary to run your pool but automatically feeds the right amount of chlorine and chemicals into the pool, creating less work for you. In this article, we'll find out how pools are built, and we'll take a look at the plumbing system that keeps the water clean and chemically balanced. Usually located in the floor of the pools deep end, the main drains name may be a little misleading. Learn the right ways for both. Thats a silly question. The order of equipment is as follows: Important: If you use both a pool heater and a chemical feeder, make sure you place them in the correct order when connecting them to your filtration system. This allows for better circulation as water is pulled from the top by the skimmers, and from the bottom by the main drain.
These dual suction drains enhance circulation, pulling in water from the depths of the pool while the skimmers pull in from the top. pool swimming diagram plumbing plan pipework diagrams pools concrete gunite systems outdoor Built into the side of the pool, these are plastic buckets that house skimmer baskets. What kind of material is your pool?
It carries the water through the filter, heater, and chlorinator to stay clean, be heated, and get the right mix of chemicals. What sort of chemical feeder do you have? You might wonder why the filter is needed if sanitizing chemicals are always present in the water. We cut out all the confusion of pool maintenance in this easy-to-read illustrated ebook and video course. On its way to the pump, some pools will pass the water through a pre-filter basket, sometimes called a pool pump strainer or pump pot basket. Pool heaters are available for both above ground and inground pools and include solar, electric heat pump, and gas. It does what the name says; it keeps your pool at a comfortable temperature so you can enjoy it longer. The main drains are also used when draining the pool, but their main job is as a circulation starting point. Buying and putting in a pool is a considerable investment. Some pools also include heaters in the mix, in order to keep the water at a certain temperature. While you might think of a pool pump as only pushing, or pumping water, thats only half of what it does. The first is the skimmer, and the second is the main drain. West Chicago, IL 60185. How do you maintain your pool? As the water passes through the pump, the force being exerted on it changes from pulling to pushing. The key to bringing your pool back to life is choosing the right pool paint.
It'll help you save $100 right away on pool care! And each year, he continues to help more people with water chemistry, cleaning, and troubleshooting.
Inground pools come in various sizes, shapes, and styles, so no one description will fit them all; however, they all work very similarly. But on a hot summer day, a swimming pool can seem like the greatest invention known to man. Without sanitizers such as chlorine, or bromine, your pool will quickly become a biohazard, and would most likely be declared a toxic waste site after a few short months. After the water goes through the filter (and any optional devices), the return lines send it back to the pool. The anatomy of your swimming pool can be complex, so heres what you need to know. Unfortunately, chlorine, bromine, or biguanide chemicals wont get rid of everything in the water, which is where filters come in. Swimming pools come in all shapes, sizes, and styles. 17 September 2002. They usually range from to 3 horsepower. pool swimming plumbing pools construction inground ground diagram spa drawing equipment system tubs basic Every pool, whether it be an inground or above ground pool, has the same primary components.
The skimmer basket catches this debris so that it wont clog up the filter that is further down the line.

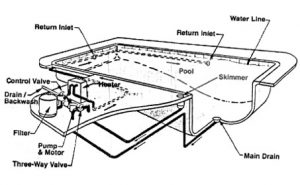

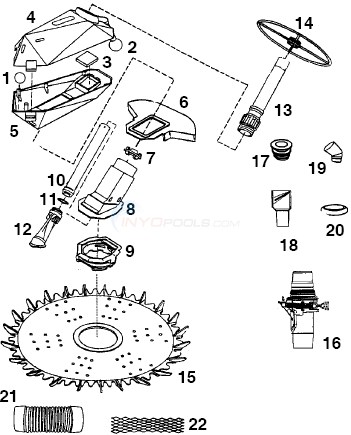

Thankfully, though, a pool doesnt have nearly as many moving parts as a car, so you can take care of it yourself a lot more easily. baracuda parts manta inground zodiac inyopools diagram pool A typical swimming pool needs seven major components: The basic idea is to pump water in a continual cycle, from the pool through the filtering and chemical treatment systems and back to the pool again. Tip: To get that circulation in the pool, and if you have two or more return jets, angle some of them down towards the floor and in one direction, either left or right. This side of the pool pushes water from the filtration system back into the pool, completing the circulation process. The pool pump contains an impeller, which spins fast enough to create a vacuum, which pulls the water into the filtration system. And as it turns out, there really is a lot of cool technology at work in your average pool -- much more than you might expect. For one thing, above ground pools usually only have one skimmer, and one return jet. It does this by using a 3-part automated pool circulation and filtration system consisting of various pool equipment: Lets go over each of the parts in more detail, following the flow of water from both an inground or above ground swimming pool. Suction lines can leak, causing problems with the system. The suction side of your pool has the job of drawing water up out of your pool to the pump. If youve ever reused bath water or dishwater, you know how quickly it can be polluted, and how unbelievably gross it is to reuse that water. Below, I break each area down for you in detail. pool system pump pools spartan inc operational tips water If you dont have a salt pool, neither a feeder or generator needs to be added to the system as long as sanitizer is being added to the water in a traditional manner. This helps to not only direct water into the skimmers, but any debris that may be floating on the waters surface, where it can be caught in the skimmer basket. You want to create a circular motion while helping to kick debris off the bottom with the jets angling down. No, its not one of the essential parts of a swimming pool. The various parts of a pool work fluidly to provide people with a safe and clean swimming experience. But draining an inground pool incorrectly could destroy it. Want to make your pool care even easier, and your pool even more enjoyable? If you are in the market for a swimming pool or already own one, it is essential to understand the parts of what youre purchasing and how they work. Normally, it performs the same function as the skimmers. Youll just fill it up with whatever type of sanitizer the feeder is made to usechlorine, bromine, or a mineral cartridgehook it up, and then not have to worry about adding sanitizer for a while. But that care still requires a foundational knowledge of all the parts of your pool. They have a suction side, a filtration system, and a pressure side, including all of the parts listed above. While theres common parts to all pools (such skimmers, drains, PVC piping), theres enough interchangeable and customizable options when it comes to pumps and filters that can be tailored to any type of pool and any budget. As its fully automated, this feeder is a set-it-and-forget-it feature that is highly appealing to some. There are two types of outlets in almost every pool. Sometimes called eyeballs, they shoot this new water at a strong pressure to help it mix with existing sanitizers in the water, making for a clean and balanced pool. And pumps need to be replaced every eight to 15 years, look for common signs along the way though that you may need to replace it. The cupro nickel heat exchanger protects against corrosion caused by unbalanced water chemistry.
Without any one of them, you wont have any pool circulation, which means youll have a really dirty pool. pool swimming installation inground kits fiberglass pools diagram install drawing kit hole middle deep dug The main drain is located at the bottom of the pool and pulls debris that has fallen to the base.
pool diagram skimmer inground plumbing swimming blow piping lines holes winter connected pools drain intheswim main skimmers hole pipe bottom The first thing its responsible for is creating the suction that pulls the pool water into the main drains and skimmers. Something went wrong.

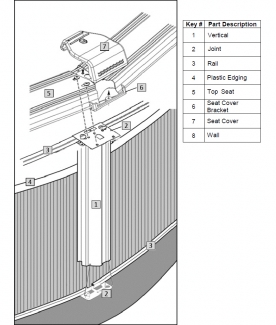

pool swimming construction plumbing pools inground ground piscina plan google equipment above diagram infinity drawing system basic da swiming piscine For one, they do not cost as much, and they are easy and faster to construct. And they work more efficiently with a solar pool cover. It is your pools first line of defense when it comes to cleanliness as it helps rid the collection of leaves, insects, and pollen. As the skimmer is a high flow area of the pool, the water will move over the basket and dissolve the tablet in an effective manner. Plus, it's easy enough that almost anyone can do it. pool plumbing swimming pools spa system inground equipment drain diagram schematic ground image024 simple construction basic gunite installation bars beach pentair parts skimmers hydro skim pool diagram ground above inyopools Got a little extra cash to spend?
They each have their pros and cons, but all are effective and easy to maintain. The generator continuously runs, making for a higher electrical bill. While sanitizers like chlorine kill viruses and bacteria, thats only half the job of cleaning the water. Again, the name gives it away. Which pump you choose will determine the cost of the pump. Using a solar pool cover will also help as it keeps heat from escaping through the surface of the pool. Learning how to patch a pool liner could save you thousands of dollars and prevent extensive damage. Both sides are crucial in keeping your pool clean, free of algae and bacteria, and safe for you to use. Skimmers, main drains, suction lines, pump, filter, return lines, return jets what else is there? Please check your entries and try again. diagram pool swimming system filtration faq standard
The larger the pool, the more horsepower the pump will need to move the higher volume of water. pool swimming construction easycare pools concrete diagram structure wave step pleasure nz How To Prevent & Destroy Algae In Your Swimming Pool, Considering Pool Scuppers? There are usually 2 or 3 of them in an inground pool, while above ground pools only use 1. Other than that, water still goes from the pool, through the skimmer, through the pump, through the filter, and through the return jet back into the pool. Once you know what each part of the pool does, its location will make sense. pool swimming spa plumbing diy build own equipment diagram bbq island pools container crashers yard natural piping inground "How Swimming Pools Work" This generator replaces the chemical feeder option for saltwater pools. Its name says it all.
If youre having trouble with your jets, read my return jets troubleshooting guide. ), and cartridge. Single speed pumps work at 1 speed, 2-speed pumps have dual speeds (high and low), and variable pumps can be set at various speeds. In the past, when the main drain was covered, one problem was the suction became so strong that some swimmers, including children, got stuck in the suction, causing them to drown. Pump K. Check valve. inground He has built pools and natural landscapes for hundreds of homes and businesses across the country. While it can be used to drain the pool, its seldom used that way. skimmer inground weir skimmers weirs poolplaza filtracin In the next section, we'll look at the different types of pools.
Think of it this wayif you were going to maintain your own car rather than take it to a mechanic, its imperative to know how the engine works, what all the parts are, how they work together, and what to look for when something goes wrong. Thankfully, todays pools include stricter safety precautions for main drains, but caution should always be taken, and owners should keep the main drain clear of debris for this reason. Compare quotes for free from fully vetted pool professionals.
The suction lines are either a flexible or rigid set of PVC pipes that run from the skimmer to the pump system. Main drains can be found in the deep end of the pool and they work alongside the skimmers to pull water in. There are several types of pumps on the market, and which one you choose is a personal preference; however, you will need to determine the flow rate and head to find the right size pump: These factors will also play into how often to run your pool pump each day. You will need to empty the skimmer basket periodically to keep it from clogging and keep your filtration system working well. A chemical feeder is not necessary to run your pool but automatically feeds the right amount of chlorine and chemicals into the pool, creating less work for you. In this article, we'll find out how pools are built, and we'll take a look at the plumbing system that keeps the water clean and chemically balanced. Usually located in the floor of the pools deep end, the main drains name may be a little misleading. Learn the right ways for both. Thats a silly question. The order of equipment is as follows: Important: If you use both a pool heater and a chemical feeder, make sure you place them in the correct order when connecting them to your filtration system. This allows for better circulation as water is pulled from the top by the skimmers, and from the bottom by the main drain.
These dual suction drains enhance circulation, pulling in water from the depths of the pool while the skimmers pull in from the top. pool swimming diagram plumbing plan pipework diagrams pools concrete gunite systems outdoor Built into the side of the pool, these are plastic buckets that house skimmer baskets. What kind of material is your pool?
It carries the water through the filter, heater, and chlorinator to stay clean, be heated, and get the right mix of chemicals. What sort of chemical feeder do you have? You might wonder why the filter is needed if sanitizing chemicals are always present in the water. We cut out all the confusion of pool maintenance in this easy-to-read illustrated ebook and video course. On its way to the pump, some pools will pass the water through a pre-filter basket, sometimes called a pool pump strainer or pump pot basket. Pool heaters are available for both above ground and inground pools and include solar, electric heat pump, and gas. It does what the name says; it keeps your pool at a comfortable temperature so you can enjoy it longer. The main drains are also used when draining the pool, but their main job is as a circulation starting point. Buying and putting in a pool is a considerable investment. Some pools also include heaters in the mix, in order to keep the water at a certain temperature. While you might think of a pool pump as only pushing, or pumping water, thats only half of what it does. The first is the skimmer, and the second is the main drain. West Chicago, IL 60185. How do you maintain your pool? As the water passes through the pump, the force being exerted on it changes from pulling to pushing. The key to bringing your pool back to life is choosing the right pool paint. It'll help you save $100 right away on pool care! And each year, he continues to help more people with water chemistry, cleaning, and troubleshooting. Inground pools come in various sizes, shapes, and styles, so no one description will fit them all; however, they all work very similarly. But on a hot summer day, a swimming pool can seem like the greatest invention known to man. Without sanitizers such as chlorine, or bromine, your pool will quickly become a biohazard, and would most likely be declared a toxic waste site after a few short months. After the water goes through the filter (and any optional devices), the return lines send it back to the pool. The anatomy of your swimming pool can be complex, so heres what you need to know. Unfortunately, chlorine, bromine, or biguanide chemicals wont get rid of everything in the water, which is where filters come in. Swimming pools come in all shapes, sizes, and styles. 17 September 2002. They usually range from to 3 horsepower. pool swimming plumbing pools construction inground ground diagram spa drawing equipment system tubs basic Every pool, whether it be an inground or above ground pool, has the same primary components.
The skimmer basket catches this debris so that it wont clog up the filter that is further down the line. Thankfully, though, a pool doesnt have nearly as many moving parts as a car, so you can take care of it yourself a lot more easily. baracuda parts manta inground zodiac inyopools diagram pool A typical swimming pool needs seven major components: The basic idea is to pump water in a continual cycle, from the pool through the filtering and chemical treatment systems and back to the pool again. Tip: To get that circulation in the pool, and if you have two or more return jets, angle some of them down towards the floor and in one direction, either left or right. This side of the pool pushes water from the filtration system back into the pool, completing the circulation process. The pool pump contains an impeller, which spins fast enough to create a vacuum, which pulls the water into the filtration system. And as it turns out, there really is a lot of cool technology at work in your average pool -- much more than you might expect. For one thing, above ground pools usually only have one skimmer, and one return jet. It does this by using a 3-part automated pool circulation and filtration system consisting of various pool equipment: Lets go over each of the parts in more detail, following the flow of water from both an inground or above ground swimming pool. Suction lines can leak, causing problems with the system. The suction side of your pool has the job of drawing water up out of your pool to the pump. If youve ever reused bath water or dishwater, you know how quickly it can be polluted, and how unbelievably gross it is to reuse that water. Below, I break each area down for you in detail. pool system pump pools spartan inc operational tips water If you dont have a salt pool, neither a feeder or generator needs to be added to the system as long as sanitizer is being added to the water in a traditional manner. This helps to not only direct water into the skimmers, but any debris that may be floating on the waters surface, where it can be caught in the skimmer basket. You want to create a circular motion while helping to kick debris off the bottom with the jets angling down. No, its not one of the essential parts of a swimming pool. The various parts of a pool work fluidly to provide people with a safe and clean swimming experience. But draining an inground pool incorrectly could destroy it. Want to make your pool care even easier, and your pool even more enjoyable? If you are in the market for a swimming pool or already own one, it is essential to understand the parts of what youre purchasing and how they work. Normally, it performs the same function as the skimmers. Youll just fill it up with whatever type of sanitizer the feeder is made to usechlorine, bromine, or a mineral cartridgehook it up, and then not have to worry about adding sanitizer for a while. But that care still requires a foundational knowledge of all the parts of your pool. They have a suction side, a filtration system, and a pressure side, including all of the parts listed above. While theres common parts to all pools (such skimmers, drains, PVC piping), theres enough interchangeable and customizable options when it comes to pumps and filters that can be tailored to any type of pool and any budget. As its fully automated, this feeder is a set-it-and-forget-it feature that is highly appealing to some. There are two types of outlets in almost every pool. Sometimes called eyeballs, they shoot this new water at a strong pressure to help it mix with existing sanitizers in the water, making for a clean and balanced pool. And pumps need to be replaced every eight to 15 years, look for common signs along the way though that you may need to replace it. The cupro nickel heat exchanger protects against corrosion caused by unbalanced water chemistry.
Without any one of them, you wont have any pool circulation, which means youll have a really dirty pool. pool swimming installation inground kits fiberglass pools diagram install drawing kit hole middle deep dug The main drain is located at the bottom of the pool and pulls debris that has fallen to the base.
pool diagram skimmer inground plumbing swimming blow piping lines holes winter connected pools drain intheswim main skimmers hole pipe bottom The first thing its responsible for is creating the suction that pulls the pool water into the main drains and skimmers. Something went wrong. pool swimming construction plumbing pools inground ground piscina plan google equipment above diagram infinity drawing system basic da swiming piscine For one, they do not cost as much, and they are easy and faster to construct. And they work more efficiently with a solar pool cover. It is your pools first line of defense when it comes to cleanliness as it helps rid the collection of leaves, insects, and pollen. As the skimmer is a high flow area of the pool, the water will move over the basket and dissolve the tablet in an effective manner. Plus, it's easy enough that almost anyone can do it. pool plumbing swimming pools spa system inground equipment drain diagram schematic ground image024 simple construction basic gunite installation bars beach pentair parts skimmers hydro skim pool diagram ground above inyopools Got a little extra cash to spend?
They each have their pros and cons, but all are effective and easy to maintain. The generator continuously runs, making for a higher electrical bill. While sanitizers like chlorine kill viruses and bacteria, thats only half the job of cleaning the water. Again, the name gives it away. Which pump you choose will determine the cost of the pump. Using a solar pool cover will also help as it keeps heat from escaping through the surface of the pool. Learning how to patch a pool liner could save you thousands of dollars and prevent extensive damage. Both sides are crucial in keeping your pool clean, free of algae and bacteria, and safe for you to use. Skimmers, main drains, suction lines, pump, filter, return lines, return jets what else is there? Please check your entries and try again. diagram pool swimming system filtration faq standard
